Gen 2

Neutral pressure, low residual

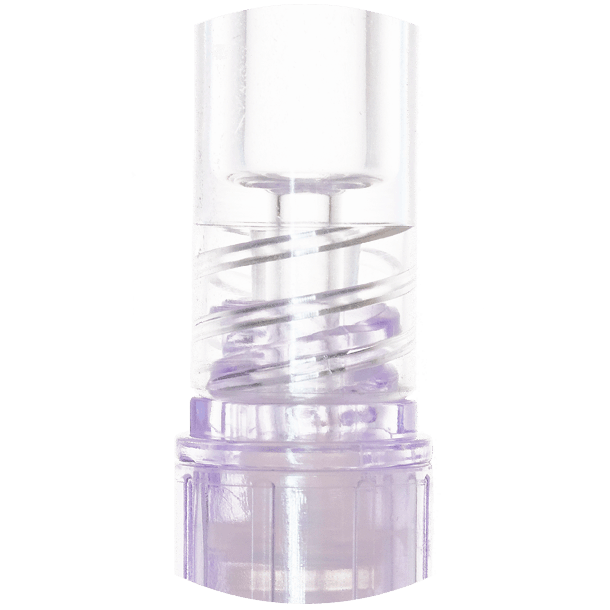

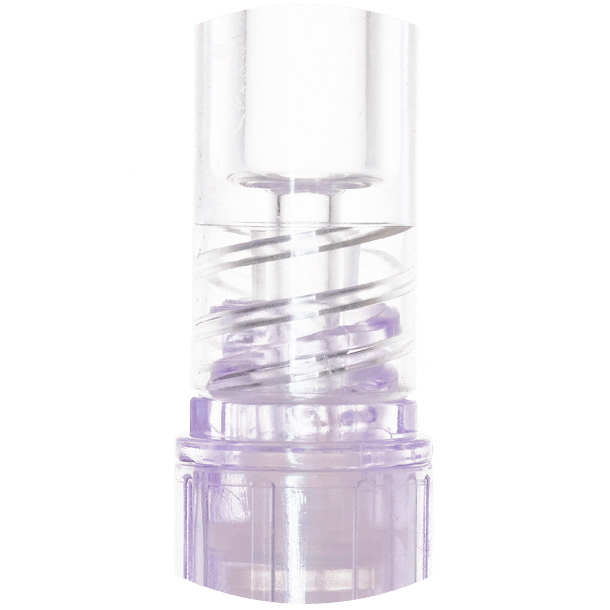

​Comply with ISO 594 standards

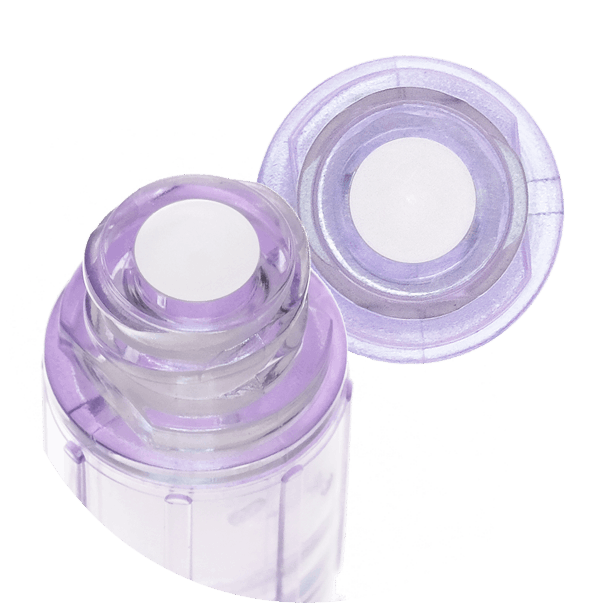

Easy to clean swabable surface
Neutral pressure, reduce the pain of insert and pull out the needle

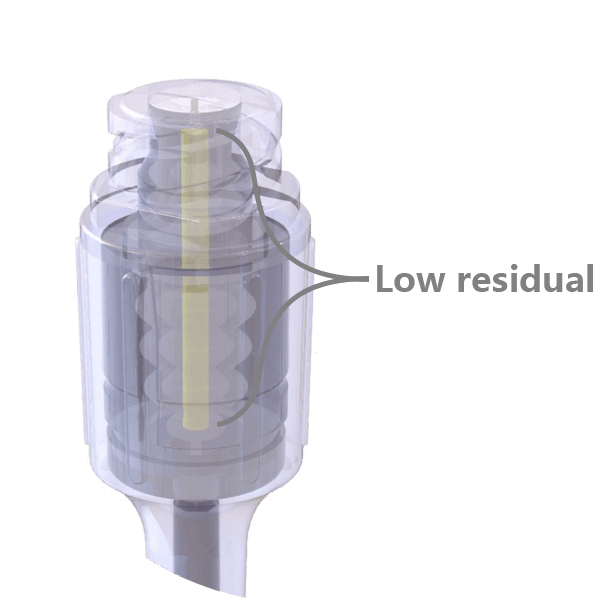

Low residual, only 0.016ml priming volume when disconnected
Biocompatibility test pass

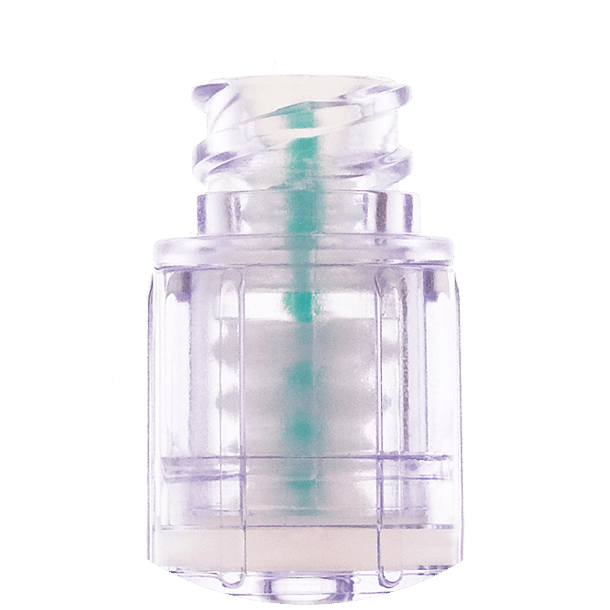

Easy to visualize the fluid path

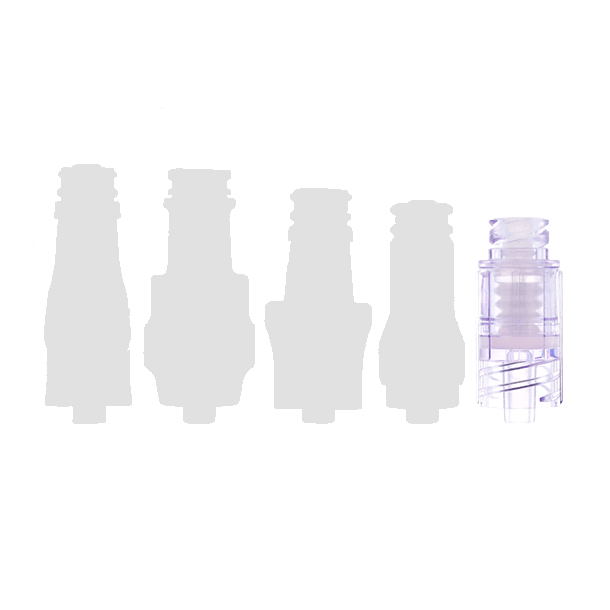

Small size, acquired patents from multiple countries

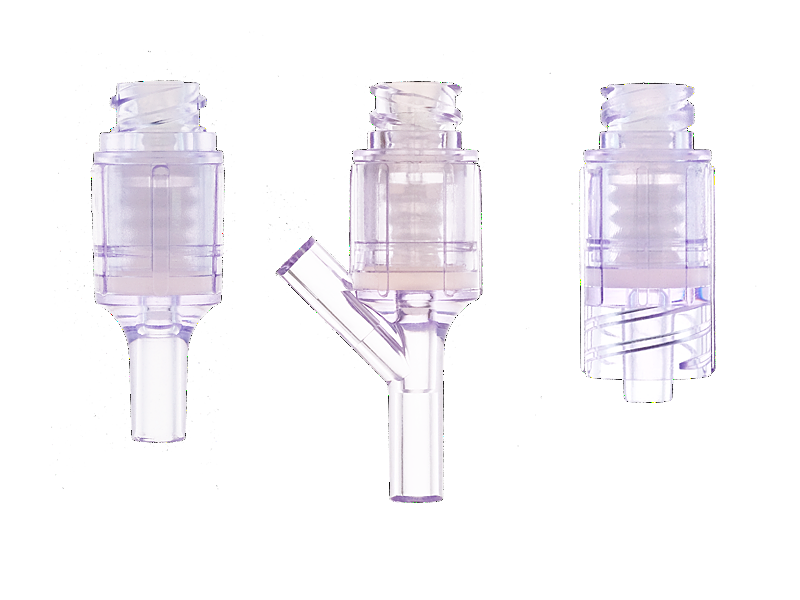

Needleless infusion devices develop and produce by Chifeng plastic, and acquired patents from multiple countries. Compared with Gen 1, the Gen 2 needleless infusion series using the neutral pressure design, minimized the pressure from insert and pull out the needle, in order to reduce the pain of discomfort of the pressure changing from a patient.
Metal components are not included in this product, in order to avoid components malfunction or affect the MRI. The fitting part follow the ISO 594 standards and complete the test, can fit any infusion products who follow the ISO 594 standards. Housing and septum material is using medical grade polycarbonate and medical grade silicone, easy to visualize the fluid path during operation, bio-caompatibility test pass, lipid and alcohol resistance. Silicone seal can activation up to 200 actuations, and the swabable surface is sealed arround the top of housing, to create first microbial barrier protection. In the fluorescein dye test.

According to the fluorescein dye test, when disconnect and swab the surface, the fluorescein dye did not residual on the swabable surface. When need to using the Gen 2 needleless series in the high pressure infusion therapy, it has #16C002 to provide high pressure infusion therapy, it can withstand the pressure from pipeline up to 22.8kg/cm2 (325PSI).

TO SEE #Superior Chemo drug preparation system #18C025

  • Materials - Medical grade polycarbonate and medical grade silicone, biocompatibility test pass.
  • Pressure type - Neutral pressure.
  • Functional activation - Up to 200 actuations.
  • ​Flow rate - 130 ~ 165 ml / min (at 35.4 inch head height).
  • Residual volume - 0.016ml
  • Reflux Volume - 0.01ml
  • Flush Volume - Minimal dead space (also referred to as residual volume) of 0.016 mL allows for lower flush volumes.
  • Disconnect force - <1kg
  • Pressure leakage​​ - Up to 7kg/cm2 of air (Disconnection) / 24kg/cm2 (350PSI) of air (Connection)
  • Alcohol - Compatible : Yes.
  • Lipid - Compatible : Yes.
Mobirise

14C007

Injection site
Color : Transparent
Material : PC + MABS
Application : for CSTD with P/N: 12C009 CML or for infusion type

Mobirise

18C024

Injection site
Color : Yellow + Transparent
Material : PC + MABS
Application : for CSTD with P/N: 18C025 Superior CML

Mobirise

16C004

Y connector for OD 4.1mm tubing
Color : Transparent
Material : PC + MABS
Application : for infusion type

Mobirise

13C015

Y connector for OD 2.3mm tubing
Color : Transparent
Material : PC + MABS
Application : for infusion type

Mobirise

16C001

Y connector for OD 2.8mm tubing
Color : Transparent
Material : PC + MABS
Application : for infusion type

Mobirise

13C001

T connector for OD 2.3mm tubing
Color : Transparent
Material : PC + MABS
Application : for infusion type

Mobirise

11C024

Straight type connector for OD 4mm tubing
Color : Transparent
Material : PC + MABS
Application : for infusion type

Mobirise

16C008

Straight type connector for OD 4mm tubing
Color : Transparent
Material : PC + MABS
Application : for infusion type
325 PSI

Mobirise

11C025

Straight type connector for OD 2.3mm tubing
Color : Transparent
Material : PC + MABS
Application : for infusion type

Mobirise

16C007

Straight type connector for OD 2.3mm tubing
Color : Transparent
Material : PC + MABS
Application : for infusion type
325PSI

Mobirise

16C002

Injection site
Color : Transparent
Material : PC + MABS
Application : for infusion type
325 PSI


Please view in our alibaba website.
